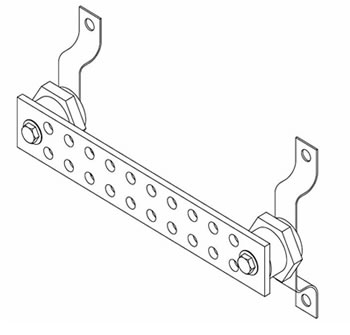

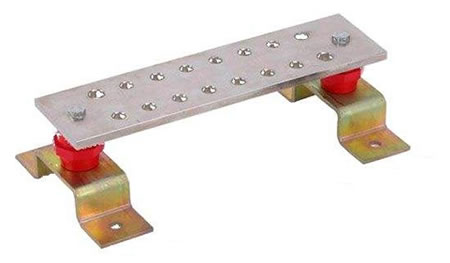

Earthing Copper Busbar

        Earthing copper busbar is a kind of large current electrical conductivity product, it’s applied to the communication system grounding. It could prevent and reduce the damage of induction lightning, surge overvoltage and surge overcurrent to the equipment. This design has enough capacity of lightning discharge, so it can guarantee the operation of equipment system is safety and reliable.
        The materials of earthing copper busbar can be red copper and brass, the dimensions and punching are customized by customer's requirements. This product is equipped with earthing bolts, insulators, mounting brackets and expansion bolts, which is convenient for users to install.

No. Piece parts Materials 1 Copper Busbar Brass, Red Copper 2 Insulator UPR 3 Mounting Bracket SUS304/201/Q235 4 Nut SUS304/201/Q235 5 Plain Washer SUS304/201/Q235 6 Bolt SUS304/201/Q235 7 Expansion Bolt SUS304/201/Q235

Specification：

Contact Resistance	≤1mΩ
Withstand Voltage	≥5000V
Impact Resistance	≥100KA
Surface Treatment	Tin-Plating, galvanized, Plate with nickel
2011/65/EC (RoHS)	Compliant
