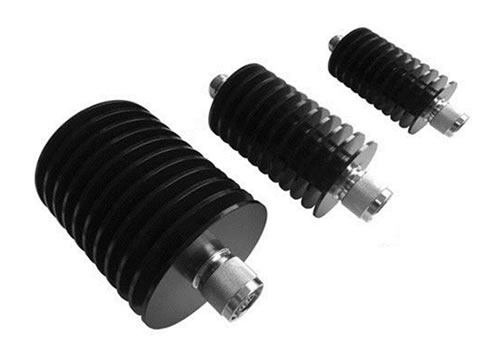

Load

         The Load is a passive device of termination to branch nodes and detection ports, which be used in distribution system links. According to different power ranges, the loads can be divided into different types: power less than or equal to 5 watts; power between 5 watts and 50 watts and power more than 50 watts.

 Specification：

Connector Type	NM,NF,7/16M,7/16F
Characteristics Impedance	50Ω
Frequency Range	0.4~3GHz
VSWR	≤1.3
PIM3	≤-140dBc(+43dBm×2)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
