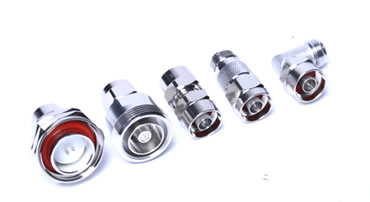

Adaptor

The feeder adaptor is used to connect the connectors in the telecommunication transmission system, it plays a role of transfer effect to connectors. It can be sorted by the type of N and 7/16, and it also can be sorted by the transfer interface of male and female.

No.	Piece Parts	Materials
1	Nut	Brass / Nickel plating
2	Outer Shell	Brass (Trimetal Plating)
3	Inner conductor	Brass (Gold Plating)
4	Insulator	PTFE / TPX
5	Clamps	Brass / Nickel Plating
6	Gasket	Silicon Rubber

No.	Piece Parts	Materials
1	Outer Shell	Brass (Trimetal Plating)
2	Inner conductor	Brass (Gold Plating)
3	Insulator	PTFE / TPX
4	Clamps	Brass / Nickel Plating
5	Gasket	Silicon Rubber

Specification：

Connector Type	NM-NM,NF- NF, NMA-NF,7/16M-7/16M, 7/16M-NM ,7/16M-NF, 7/16F-NM,7/16F-NF
Characteristics Impedance	50Ω
Insulation Resistance	≥5000MΩ
Frequency Range	DC~7.5GHz
Insertion Loss	≤0.1dB
VSWR	≤1.10（0.8-2.5GHz） ≤1.15（2.5-3GHz）
PIM3	≤-155dBc(Typical)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
