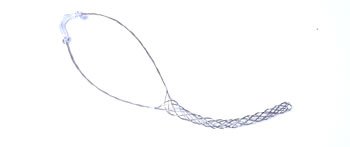

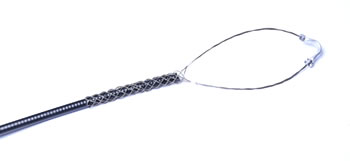

Pre-laced Hoisting Grip

    Hoisting grip provide an effective means for hoisting coax and elliptical waveguide into position, it can be used to provide additional support once in place. The lace-up design allows the hoisting grip to be attached where the run has been terminated, and it facilitates easy positioning at 200 feet (61 m) increments on long coax run.

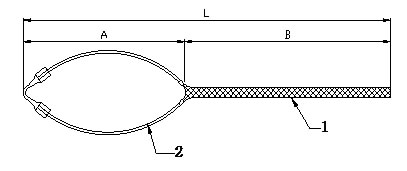

No.

Piece Parts

Materials

1

Lace Body

SUS304

2

Mesh

SUS304

            Size
Part No.

1/2"

7/8"

L(mm)

450~500

550~600

A(mm)

250-300

250~300

B(mm)

200~250

300~350

Support Load Capacity

>150 Kg

>250 Kg




 Specification:
 Application  1/4”, 1/2”, 7/8”, 5/4”, 13/8"S, etc.
 Salt Spray Chamber (Neutral)  ≥96 Hours
 2011/65/EC (RoHS)  Compliant
