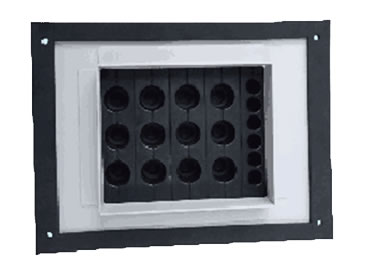

Variable-diameter Cable Wall Entry

        The variable-diameter cable wall entry is made of stainless steel or aluminum alloy substrate and rubber components, which possesses beautiful appearance, convenient installation and excellently tightness properties. It’s apply to all sorts of cables into the engine room, thus play a role in sealing, it can protect the internal equipment of the base station from the external environment.

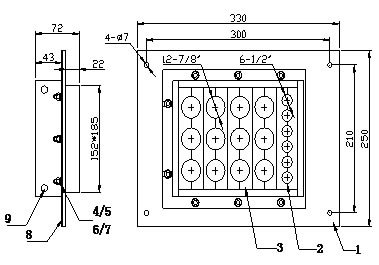

No.

Piece Parts

Size

Materials

1

Frame

250*330

SUS304、
Stainless Steel,Aluminum Alloy、Q235

2

Cushion Insert

1/2”

EPDM

3

Cushion Insert

7/8”

EPDM

4

Threaded Rod

M6*15

SUS304

5

Nut

M6

SUS304

6

Plain Washer

M6

SUS304

7

Spring Washer

M6

SUS304

8

Sealing

5mm

9

Bolt

M6*220

SUS304



Specification:
 Application  1/4”, 1/2”, 7/8”, 5/4”, 13/8"S, etc.
 Sealing Property  IP65
 Low Temperature(-45±3℃)  24 Hours
 High Temperature(70±2℃)  24 Hours
 Salt Spray Chamber (Neutral)  ≥96 Hours
 UV Resistance  72 Hours
 2011/65/EC (RoHS)  Compliant
