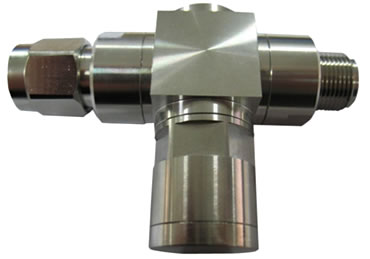

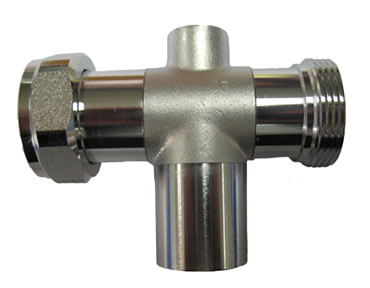

Lighting Arrester Connector

        1/4 wave length lightning arrester connector is designed according to the voltage standing wave theory and the spectrum of lightning waves. It features fast response time, large through-flow capacity, wide operating frequency band, minor voltage standing wave and low insertion loss. It’s applied to induction lightning protection requirements of different communication equipment, and it’s suitable for various frequency bands of GSM, CDMA, TD-SCDMA, CDMA2000, WCDMA, TD-LTE, etc.

No. Piece parts Materials 1 Nut Brass / Nickel Plating 2 Outer Shell Brass (Trimetal Plating) 3 Inner Conductor Brass (Sliver Plating) 4 Insulator PTFE / TPX

 Specification：

Connector Type	NM- NF, 7/16M-7/16F
Characteristics Impedance	50Ω
Insulation Resistance	≥5000MΩ
Frequency Range	0.8~2.7GHz
Flow Capacity	60KA(8/20μs)
Residual Voltage	≤100V
Average Power	2KW
Insertion Loss	≤0.2dB
VSWR	≤1.20（0.8-2.7GHz）  ≤1.15（2.5-3GHz）
PIM3	≤-155dBc(Typical)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
