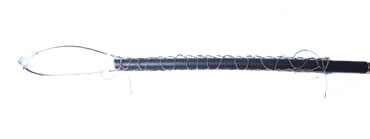

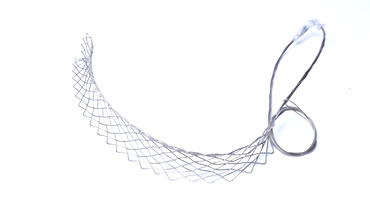

Lace-up Hoisting Grip

    Hoisting grip provide an effective means for hoisting coax and elliptical waveguide into position, it can be used to provide additional support once in place. The pre-laced hoisting grips feature a close-mesh design which simplifies installation over traditional split lace-up style grips, the unique design allows the pre-laced hoisting grip to slip over an unterminated end of a coax cable.


No.

Piece Parts

Materials

1

Lace Body

SUS304

2

Mesh

SUS304

            Size
Part No.

1/2"

7/8"

L(mm)

450~500

550~600

A(mm)

250-300

250~300

B(mm)

200~250

300~350

Support Load Capacity

>150 Kg

>250 Kg




 Specification:
 Application  1/4”, 1/2”, 7/8”, 5/4”, 13/8"S, etc.
 Salt Spray Chamber (Neutral)  ≥96 Hours
 2011/65/EC (RoHS)  Compliant
