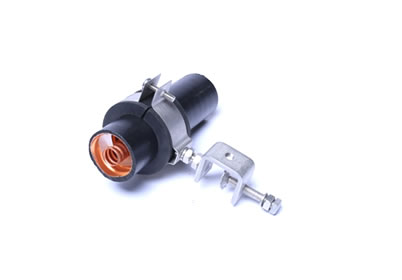

The hoop type feeder clamp is a kind of combined fixture, it's mainly applied to communication cable,
power cable and optical cable. The rubber part is with good aging resistance, which possesses good impact
resistance and chemical resistance, it can protect the cable effectively. The metal part is made of stainless
steel, which possesses acid proof and high tenacity. Through the bolt to adjust the clamping force, can prevent
the cable to slide.

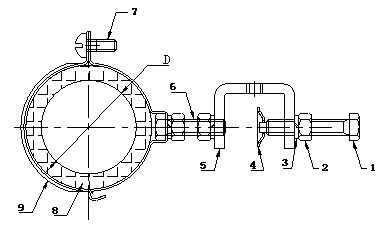

No.
Piece Parts
Size
Materials
1
Outer Hex Blot
M8*45
SUS304/201/Q235
2
Nut
M8
SUS304/201/Q235
3
Spring Washer
M8
SUS304/201/Q235
4
Bowl Washer
SUS304/201/Q235
5
C-Frame
SUS304/201/Q235
6
Bolt
M8*30
SUS304
7
Cross Screw
M6*16
SUS304
8
Cushion Insert
EPDM
9
Hose Clamp
SUS304
Specification：
Standard
YD/T 2339.1-2011
Application

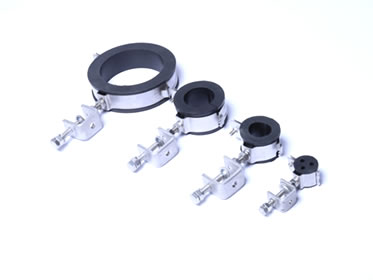

1/4", 1/2", 7/8", 5/4", 13/8" and various specs of air spaced cable.
