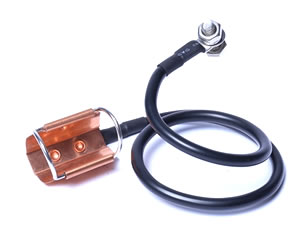

Ring Buckle Type

        The grounding kit is made of high-purity copper and grounding wire, it’s applied to the feeder grounding. The contact resistance, insulation resistance, etc. can meet the requirements of communication industry, and it can prevent the damage to relevant devices which due to lighting stroke or large current.

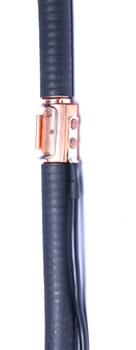

        Ring buckle type grounding kit, which is also called self-locking type. The pre-springing of grounding strap can fit the outside diameter of feeder cable, and after tightening, it effectively enlarge the contact area between grounding kit and feeder cable. When mount this kind of grounding kit, just need to push aside the buckle to positioning and fastening, then use the mastic tape to sealing and insulating.

No.

Piece Parts

Size

Materials

1

Grounding Strap

1/4"~1-5/8"

Copper,SUS304

2

Rivet Kit

5.5*5

Copper

3

Cable Lug

M6

Copper,
 Tin-plated

4

Heat Shrinkable Tube

φ9*30

Polyolefin

5

Grounding Cable

16mm²

Copper(Conductor)

PVC (Jacket)

6

Cable Lug

M8

Copper,
 Tin-plated

7

Outer Hex Bolt

M8*25

SUS304

8

Nut

M8

SUS304

9

Spring

M8

SUS304

10

Plain Washer

M8

SUS304


Specification:
 Standard  YD/T 2339.2-2011
 Standard  1/4", 1/2", 7/8",5/4",13/8"S, etc.
 Contact Resistance  ≤5mΩ
 Current Shock Withstanding  ≥20KA(8/20μs)
 Insulation Resistance  10GΩ
 Low Temperature(-40±3℃)  24 Hours
 High Temperature(70±2℃)  24 Hours
 2011/65/EC (RoHS)  Compliant
