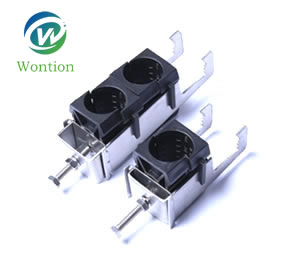

Hook Type

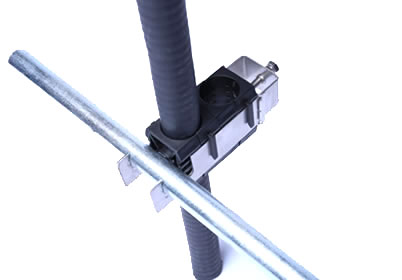

        The Hook Type feeder clamp is a kind of combined fixture, it's mainly applied to communication cable, power cable and optical cable. The plastic cable clamp is made of polypropylene, which possesses good impact resistance and chemical resistance, it can protect the cable effectively. The metal part is made of stainless steel, which possesses acid proof and high tenacity. Through the bolt to adjust the clamping force, can prevent the cable to slide.

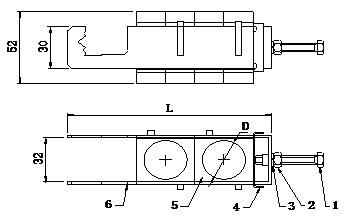

No.

Piece Parts

Size

Materials

1

Bolt

M6*35

SUS304

2

Nut

M6

SUS304

3

Plain Washer

M6

SUS304

4

Metal Barrier



SUS304

5

Plastic Cable Clamp



PP/ABS

6

L-Frame



SUS304


Specification:
 Standard  YD/T 2339.1-2011
 Application  1/4", 1/2", 7/8", 5/4", 13/8"S, etc.
 Clamping Force  ≥10N (Cable Dia.≤16mm)
 ≥20N (Cable Dia.16—28.5mm)
 ≥40N (Cable Dia.>28.5mm)
 Plastic Compression Strength  ≥350N (Cable Dia.≤16mm)
 ≥800N (Cable Dia.>16mm)
 L-frame Capacity  ≤25mm
 Low Temperature(-40±3℃)  24 Hours
 High Temperature(70±2℃)  24 Hours
 Salt Spray Chamber (Neutral)  ≥96 Hours
 UV Resistance  72 Hours
 2011/65/EC (RoHS)  Compliant
