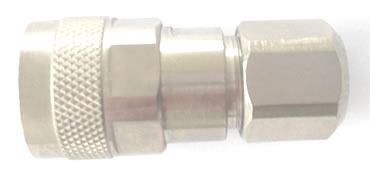

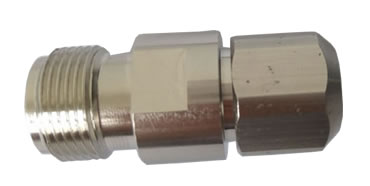

RG8 Connector

The RG8 connector is used in the transmission line of RG8 and MR400, it connects between the coaxial cables, the coaxial cable and GPS antenna. The plug is usually installed in the end of the cable, and the socket is usually installed in the fixing unit of equipment.

No.	Piece Parts	Materials
1	Nut	Brass / Nickel plating
2	Outer Shell	Brass (Trimetal Plating)
3	Inner conductor	Brass (Sliver Plating)
4	Insulator	PTFE / TPX
5	Clamps	Brass / Nickel Plating
6	Gasket	Silicon Rubber

No.	Piece Parts	Materials
1	Outer Shell	Brass (Trimetal Plating)
2	Inner Conductor	Brass (Sliver Plating)
3	Insulator	PTFE / TPX
4	Clamps	Brass / Nickel Plating
5	Gasket	Silicon Rubber

Specification：

Connector Type	NM , NF,
Application	RG8,RG8U,LMR400
Characteristics Impedance	50Ω
Insulation Resistance	≥5000MΩ
Frequency Range	DC~11GHz
Insertion Loss	≤0.1dB
VSWR	≤1.10（0.8-2.5GHz） ≤1.15（2.5-3GHz）
PIM3	≤-155dBc(Typical)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
