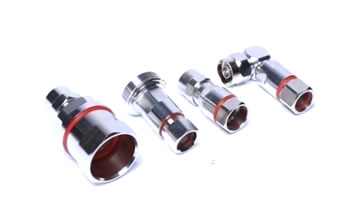

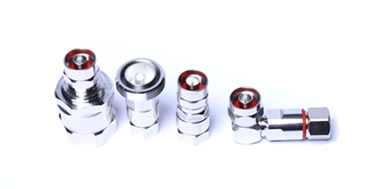

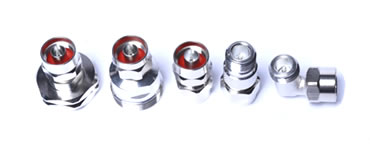

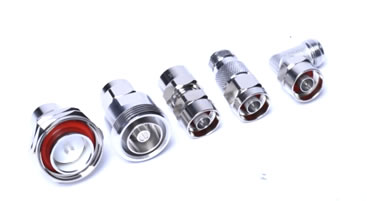

The feeder connector is used in the radio frequency transmission line, which connects between the RF coaxial cables, the coaxial cable and the micro-strip, the coaxial cable and the waveguide. The plug is usually installed in the end of the cable, and the socket is usually installed in the fixing unit of equipment.
1/2 N Male
7/8 DIN Male
No.
Piece Parts
Materials
1
Nut
Brass / Nickel plating
2
Outer Shell
Brass (Trimetal Plating)
3
Inner conductor
Brass (Sliver Plating)
4
Insulator
PTFE / TPX
5
Clamps
Brass / Nickel Plating
6
Gasket
Silicon Rubber
1/2 N Female
7/8 DIN Female
No.
Piece Parts
Materials
1
Outer Shell
Brass (Trimetal Plating)
2
Inner Conductor
Brass (Sliver Plating)
3
Insulator
PTFE / TPX
4
Clamps
Brass / Nickel Plating
5
Gasket
Silicon Rubber
Specification：
Connector Type
NM , NF, 7/16M, 7/16F, NMA
NFA, 7/16MA, 7/16FA
Application
1/4”L, 1/4”S, 1/2”L, 1/2”S, 7/8”, 5/4”, 13/8"S, etc.
