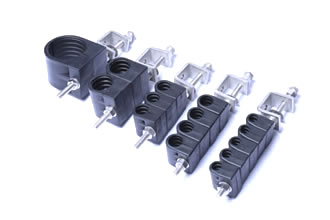

Through Type

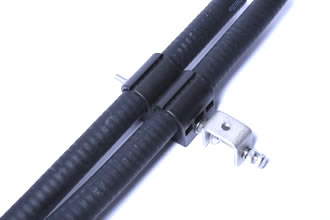

        The through type feeder clamp is a kind of combined fixture, it's mainly applied to communication cable, power cable and optical cable. The plastic cable clamp is made of polypropylene, which possesses good impact resistance and chemical resistance, it can protect the cable effectively. The metal part is made of stainless steel, which possesses acid proof and high tenacity. Through the bolt to adjust the clamping force, can prevent the cable to slide.

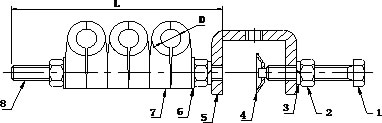

No.

Piece Parts

Size

Materials

1

Hex Blot

M8*45

SUS304/201/Q235

2

Nut

M8

SUS304/201/Q235

3

Spring Washer

M8

SUS304/201/Q235

4

Bowl Washer



SUS304/201/Q235

5

C-Frame



SUS304/201/Q235

6

Plain Washer

M8

SUS304/201/Q235

8

Plastic Cable Clamp



PP/ABS

9

Threaded Rod

M8*L

SUS304/201/Q235


Specification:
 Standard  YD/T 2339.1-2011
 Application  1/4", 1/2", 7/8", 5/4", 13/8", 1/2"S, etc.
 Clamping Force  ≥10N (Cable Dia.≤16mm)
 ≥20N (Cable Dia.16—28.5mm)
 ≥40N (Cable Dia.>28.5mm)
 Plastic Compression Strength  ≥350N (Cable Dia.≤16mm)
 ≥800N (Cable Dia.>16mm)
 C-Frame Capacity  ≤27mm
 Low Temperature(-40±3℃)  24 Hours
 High Temperature(70±2℃)  24 Hours
 Salt Spray Chamber (Neutral)  ≥96 Hours
 UV Resistance  72 Hours
 2011/65/EC (RoHS)  Compliant
