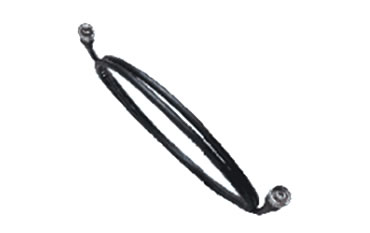

Feeder Jumper Cable

        Jumper cable is mainly used to connect the antenna and feeder cable, the feeder cable and transmitter-receiver, it’s combined with coaxial cable and connector, which has excellent mechanical and electrical properties. The structure using free-welding or welding process, the external connection between the cable and the connector apply the plastic injection or thermoplastic sleeve encapsulation technology.

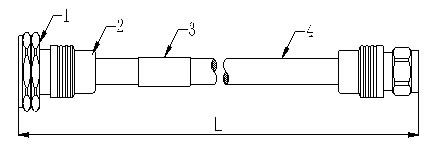

No. Piece parts Specification Materials 1 Connector Copper 2 Injection Polyethylene 3 Lable 4 RF cable 1/2”L, 1/2”S, ect.

 Specification：

Connector Type	NM、NF、7/16M、7/16F、NMA、NFA、7/16MA、7/16FA
Application	1/2”L, 1/2"S, etc.
Characteristics Impedance	50Ω
Insulation Resistance	≥5000MΩ
Frequency Range	DC~7.5GHz
Insertion Loss	≤0.15*L+0.2dB
VSWR	≤1.10（0.8-2.5GHz）  ≤1.15（2.5-3GHz）
PIM3	≤-155dBc(Typical)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
