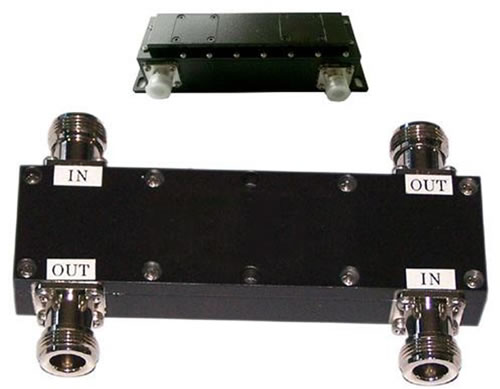

Electrical Bridge

         The wireless bridge is a passive device for power division and frequency combination of different carrier signals in the same frequency range. The frequency range of wireless bridge can be the selected fully or partly in the frequency range from 400MHz to 3GH.
 Specification：

Connector Type	NF,7/16F
Characteristics Impedance	50Ω
Frequency Range	0.4~3GHz
Insert Loss	≤0.5（dB）
Isolation	≥20（dB）
dBP-P	≤0.5（dB）
VSWR	≤1.3
Amplitude Balance	≤0.3（dB）
PIM3	≤-140dBc(+43dBm×2)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
