Power Splitter

        The power splitter is a radio frequency device to achieve the wireless signal and other power distribution. Distributes power evenly to each branch on demand, with one inlet and two or more outlets which is used to distribute node connections at the time of the system link.

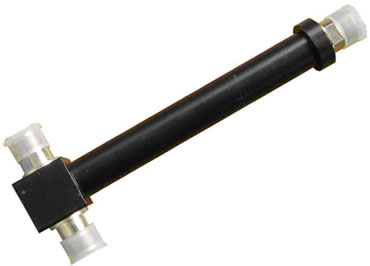

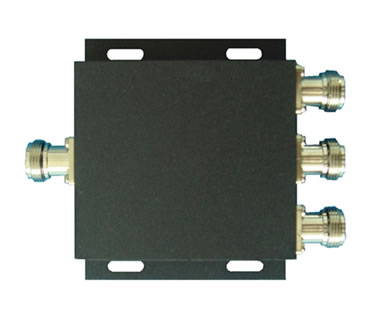

        According to the structure of the power splitter, it is divided into micro-strip power splitter and cavity power splitter. According to the quantity of outlets, it could be divided into two-way, three-way and four-way power splitter.

 Specification：

Connector Type	NF,7/16F
Characteristics Impedance	50Ω
Frequency Range	0.8~3GHz
Insert loss	≤3.3dB（2-way power splitter）  ≤5.2dB（3-way power splitter）  ≤6.4dB（4-way power splitter）
VSWR	≤1.3（Only for input）
PIM3	≤-120dBc(+43dBm×2)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
