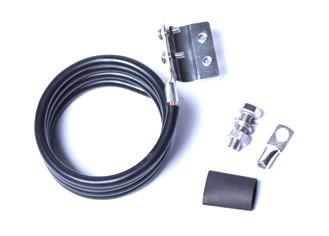

Copper Clip Type

The grounding kit is made of high-purity copper, it’s applied to the grounding of grounding wire, RG8 and the feeder cable. The contact resistance, insulation resistance, etc. can meet the requirements of communication industry, and it can prevent the damage to relevant devices which due to lighting stroke or large current.
The pre-springing of grounding strap can fit the outside diameter of grounding wire, RG8 and feeder cable. When mount this kind of grounding kit, just need to positioning and fastening with the bolt, and use the mastic tape to sealing and insulating.

No.	Piece Parts	Size	Materials
1	Grounding Strap	φ7.5～9.5	Copper, Tin-plated
2	Rivet Nut	M4	SUS304
3	O-ring Washer	M4	Black Rubber
4	Cross Screw	M4*12	SUS304
5	Plain Washer	M4	SUS304
6	Cable Lug	M4	Copper, Tin-plated
7	Grounding Cable	16mm²	Copper (Conductor)
7	Grounding Cable	16mm²	PVC （Jacket）
8	Cable Lug	M8	SUS304
9	Bolt	M8*25	SUS304
10	Plain Washer	M8	SUS304
11	Spring Washer	M8	SUS304
12	Nut	M8	SUS304
13	Heat Shrinkable Tube	φ9*30	Polyolefin
14	Mastic	3M 2166	Butyl
15	Tape	3M 1712

Specification：

Standard	YD/T 2339.2-2011
Application	3/8" S, 1/2", RG8, 8D, 2×AWG5-12, etc.
Contact Resistance	≤5mΩ
Current Shock Withstanding	≥20KA(8/20μs)
Insulation Resistance	10GΩ
Low Temperature（-40±3℃）	24 Hours
High Temperature（70±2℃）	24 Hours
2011/65/EC (RoHS)	Compliant
