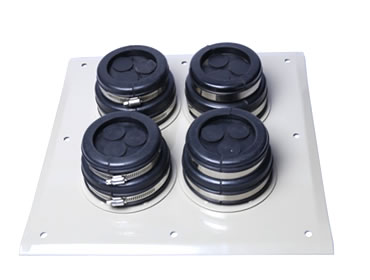

Multihole Cable Wall Entry

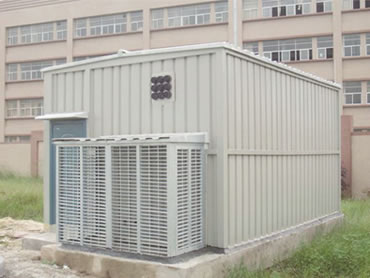

    The multihole cable wall entry is made of stainless steel or aluminum alloy substrate and rubber components, which possesses beautiful appearance, convenient installation and excellently tightness properties. It’s apply to all sorts of cables into the engine room, thus play a role in sealing, it can protect the internal equipment of the base station from the external environment.


No.

Piece Parts

Materials

1

Frame

SUS304/Aluminum Alloy

2

Boot Kits

EPDM

3

Hose Clamp

SUS304

4

Sealing

EPDM



No.

Piece Parts

A*B(mm)

C*D(mm)

1

4 Holes

400*400

340*340

2

6 Holes

400*500

340*440

3

9 Holes

500*500

440*440




 Specification:
 Application  1/4”, 1/2”, 7/8”, 5/4”, 13/8"S, etc.
 Sealing Property  IP65
 Low Temperature(-45±3℃)  24 Hours
 High Temperature(70±2℃)  24 Hours
 Salt Spray Chamber (Neutral)  ≥96 Hours
 UV Resistance  72 Hours
 2011/65/EC (RoHS)  Compliant
