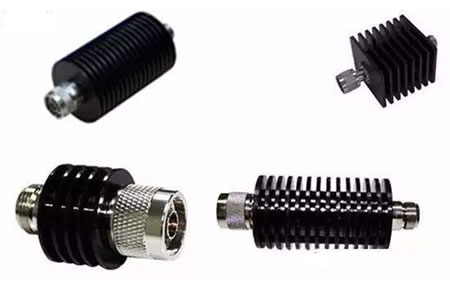

Attenuator

         The attenuator is a passive device with different attenuation values, it’s adapted for the extended end of a link in the distribution system with the radiation output rated power level of antenna.
         According to the scope of power, the attenuator can be divided into different types: power less than or equal to 5 watts; power between 5 watts and 50 watts, power more than 50 watts.

 Specification：

Connector Type	NM-NF,7/16M-7/16F
Characteristics Impedance	50Ω
Frequency Range	0.4~3GHz
Attenuation Specification	3dB        6dB      10dB       15dB       20dB       30dB      40dB
Attenuation（dB）	3±0.4    6±0.5    10±0.5    15±0.5    20±0.6    30±0.8    40±1.0
dBP-P（dB）	≤0.3       ≤0.5       ≤0.7         ≤0.8        ≤0.8        ≤1.0       ≤1.0
VSWR	≤1.2
PIM3	≤-120dBc(+43dBm×2)
Sealing Class	IP68
2011/65/EC (RoHS)	Compliant
