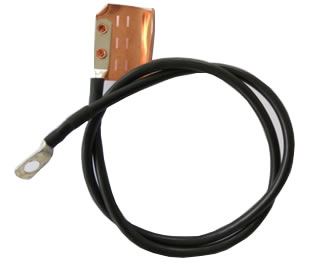

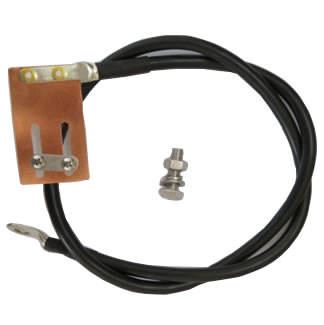

Copper Banded Type

The grounding kit is made of high-purity copper and grounding wire, it’s applied to the feeder grounding. The contact resistance, insulation resistance, etc. can meet the requirements of communication industry, and it can prevent the damage to relevant devices which due to lighting stroke or large current.
According to the different outer diameters of feeder cables, the grounding strap of copper banded type grounding kit can be twined and bent, then through the threaded rod or nylon cable tie to tighten, it effectively enlarge the contact area between grounding kit and feeder cable, finally use the mastic tape to sealing and insulating.

No.	Piece Parts	Size	Materials
1	Grounding Strap	1/4"～1-5/8"	Copper
2	Rivet Kit	5.5*5	Copper
3	Cable Lug	M6	Copper, Tin-plated
4	Heat Shrinkable Tube	φ9*30	Polyolefin
5	Grounding Cable	16mm²	Copper (Conductor)
5	Grounding Cable	16mm²	PVC（Jacket）
6	Cable Lug	M8	Copper, Tin-plated
7	Outer Hex Bolt	M8*25	SUS304
8	Nut	M8	SUS304
9	Spring Washer	M8	SUS304
10	Plain Washer	M8	SUS304
11	Mastic		Copper
12	Tape

Specification：

Standard	YD/T 2339.2-2011
Application	1/4”, 1/2”, 7/8”，5/4”,13/8"S, etc.
Contact Resistance	≤5mΩ
Current Shock Withstanding	≥20KA(8/20μs)
Insulation Resistance	10GΩ
Low Temperature（-40±3℃）	24 Hours
High Temperature（70±2℃）	24 Hours
2011/65/EC (RoHS)	Compliant
