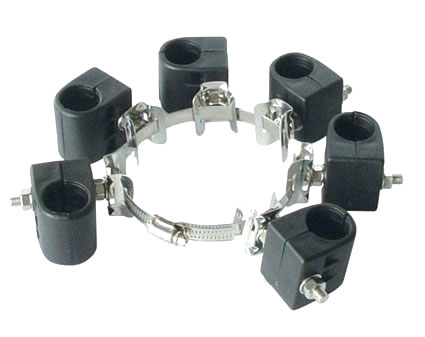

Hose Type

        The hose type feeder clamp is a kind of combined fixture, it's mainly applied to communication cable, power cable and optical cable. The plastic cable clamp is made from polypropylene, which possesses good impact resistance and chemical resistance, it can protect the cable effectively. The hose clamp is made of stainless steel, which possesses acid proof and high tenacity. The bolt can adjust the diameter, and the hose clamp has wide range of application.

No.

Piece Parts

Size

Materials

1

Hose Clamp

SUS304

2

Pendant

SUS304

3

Spring Washer

SUS304/201/Q235

4

Plain Washer

M8

SUS304/201/Q235

5

Plastic Cable Clamp

PP/ABS

6

Nut

M8

SUS304/201/Q235

7

Threaded Rod

M8*L

SUS304/201/Q235



Specification:
 Standard  YD/T 2339.1-2011
 Application  1/4", 1/2", 7/8", 5/4', 13/8"S, etc.
 Clamping Force  ≥10N (Cable Dia.:≤16mm)
 ≥20N (Cable Dia.:16—28.5mm)
 ≥40N (Cable Dia.:>28.5mm)
 Plastic Compression Strength  ≥350N (Cable Dia.≤16mm)
 ≥800N (Cable Dia.>16mm)
 Hose Clamp Capacity  60-150mm
 Low Temperature(-40±3℃)  24 Hours
 High Temperature(70±2℃)  24 Hours
 Salt Spray Chamber (Neutral)  ≥96 Hours
 UV Resistance  72 Hours
 2011/65/EC (RoHS)  Compliant
